358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

จีน Anping yuanhai wire mesh products Co., Ltd รับรอง
จีน Anping yuanhai wire mesh products Co., Ltd รับรอง
ขอบคุณสำหรับการต้อนรับที่ดีของคุณ

—— โรเจอร์ฮอปกินส์

บริษัท ที่ดีพร้อมบริการที่ดีและมีคุณภาพสูงและมีชื่อเสียงสูง

—— นายโมชาราฟฮอสเซน

ได้รับ Gabion Mesh แล้วขอบคุณสำหรับบริการหลังการขายที่ดี

—— Tshediso Sedie

สนทนาออนไลน์ตอนนี้ฉัน

358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

ภาพใหญ่ :  358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: YUANHAI
ได้รับการรับรอง: ISO9001
หมายเลขรุ่น: YH-ACF
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 100 ชิ้น
ราคา: US$20~80
รายละเอียดการบรรจุ: 1. บับเบิ้ลแรปที่ด้านล่างของพาเลท 2. ติดฟิล์มพลาสติกระหว่างแต่ละแผง 3. มุมโลหะยึดที่แต่ละมุมของแผง 4
เวลาการส่งมอบ: 5-8 วันทำงาน
เงื่อนไขการชำระเงิน: t/t, l/c
สามารถในการผลิต: 500pcs ต่อเดือน
รายละเอียดสินค้า
ชื่อผลิตภัณฑ์: 358 ป้องกัน คำสำคัญ: รั้วป้องกันการปีน รั้วป้องกันการตัด
ความแข็งแรงของรอยเชื่อม: ช่วง 540–690 N/m2 ความสูงของแผง: 1.2m-6m (ขนาดแนะนำ: 2m/2.4m/3m)
สายแนวนอน: 3.5 มม. ใบสมัคร: พื้นที่รักษาความปลอดภัยสูง
ความกว้าง: 2.5m วัสดุ: ลวดเหล็กชุบสังกะสี
การจบ: สังกะสี, เคลือบผง, เคลือบพีวีซี ระดับความปลอดภัย: Anti-Climb ต่อต้านการตัด
กระบวนการ: การทอผ้าและการเชื่อม ตัวอย่าง: ฟรี
เน้น:

358 anti-climb security fencing

,

galvanized steel security panels

,

anti-cut 358 fence panels

High Strength 358 Security Fencing Anti-Climb Protection Panels
Product Specifications
Attribute Value
Product Name 358 Security Fencing
Key Features Anti-climb, anti-cut fence
Welded Strength 540–690 N/m²
Panel Height 1.2m-6m (Recommended: 2m/2.4m/3m)
Horizontal Wire 3.5mm
Application High security areas
Width 2.5m
Material Galvanized steel wire
Finishing Galvanized, powder coated, PVC coated
Security Level Anti-Climb, Anti-Cut
Process Weaving and Welding
Sample Available for free
Product Description

The 358 security mesh is the ultimate security fencing system, also known as the wire-wall system. Its design makes it extremely difficult to cut through using conventional wire cutters, offering maximum security and anti-corrosion protection.

With its 4mm wire diameter and rectangular mesh configuration, the panel provides excellent visibility while resisting vandalism. The finger and toe-proof mesh pattern classifies it as an anti-climb system, making it ideal for high-risk areas. This system is extensively used by the Ministry of Defence around high-security sites.

The mesh size is 76.2×12.7mm (center to center), with horizontal wire spacing of 12.7mm and vertical wire spacing of 76.2mm. The fencing offers superior anti-corrosion performance, anti-aging properties, aesthetic appeal, and easy installation.

Detailed Specifications
Specification 2.1m 2.4m 3.0m
Panel height 2134mm 2438mm 2997mm
Panel width 2515mm 2515mm 2515mm
Mesh size 12.7 x 76.2mm 12.7 x 76.2mm 12.7 x 76.2mm
Horizontal wire 4mm 4mm 4mm
Vertical wire 4mm 4mm 4mm
Panel weight 50kg 57kg 70kg
Posts 60 x 60 x 3 mm 60 x 60 x 3 mm 80 x 80 x 3 mm
Post length 2.8m 3.1m 4.0m
Clamp bar 40 x 6 m slotted 40 x 6 m slotted 40 x 6 m slotted
Fixings 8 galv bolt c/w Permacone security nut
No. of fixings 8 9 11
Key Features
  • Anti-climb: The high-density mesh makes it impossible to grasp with hands and feet, providing excellent protection against climbing.
  • Anti-shear: Large wire diameter and dense mesh configuration render conventional wire cutters ineffective.
  • Aesthetic appeal: Flat mesh surface with high visibility and vandalism resistance.
Applications
Prisons
Sport Stadiums
Schools/Hospitals
Commercial Sites
Airports
Power stations
Industrial Estates

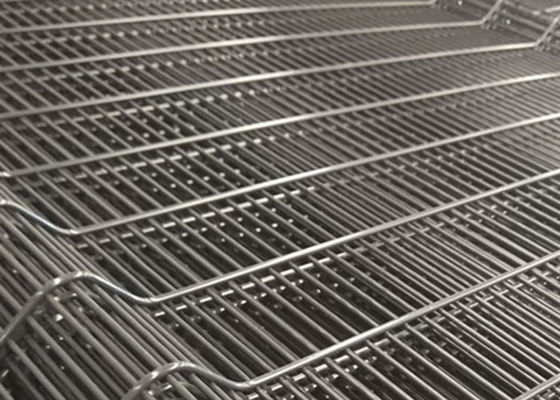

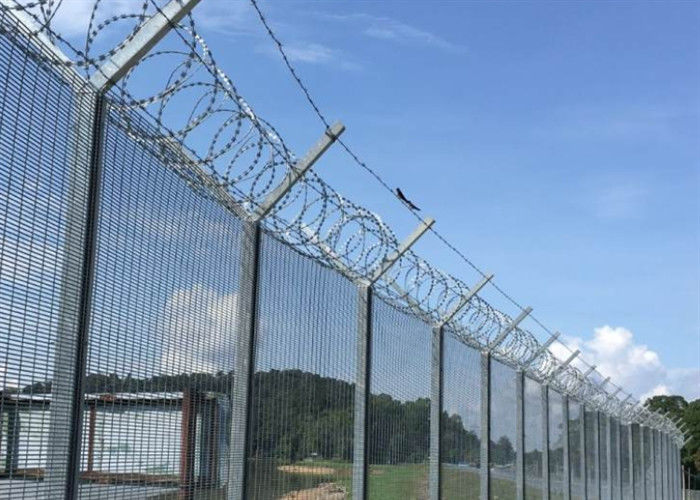

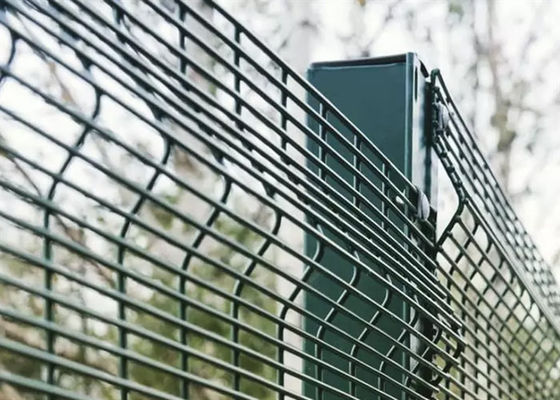

358 Fence Panel Types
358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 0 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 1

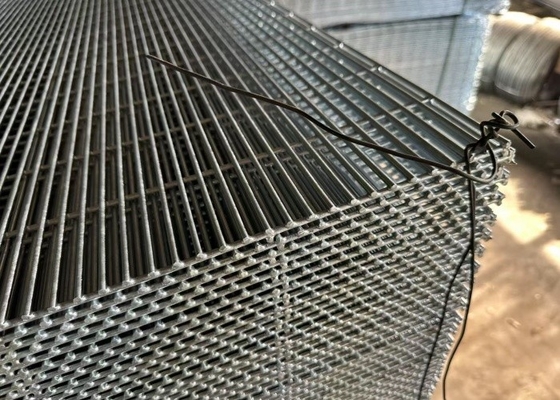

Packaging
358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 2 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 3 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 4
