รายละเอียดสินค้า:
การชำระเงิน:
|
| ชื่อสินค้า: | แผงรั้วเหล็กยอดหอก | งานคีย์: | รั้วเหล็กดัด |
|---|---|---|---|
| ขนาดซีด: | 68 มม. | ขนาด: | ยอมรับความต้องการของลูกค้า |
| เส้นผ่านศูนย์กลางลวด: | 2.0 มม. | ความหนาของมุม: | 6.0 มม. |
| ความสูงของแผงรั้ว: | 1-6ม | หัวซีด: | สามชี้ |
| โพสต์: | 55x100x5.0มม | ความสูงเหนือพื้นดิน: | 1-4.2ม |
| ระยะห่างระหว่าง Palisades: | 70 มม. ถึง 100 มม | รูปร่างตาข่าย: | สี่เหลี่ยม |
| เน้น: | 6x8 spear top steel fence panel,galvanized steel palisade fencing,powder coated steel fence panel |
||

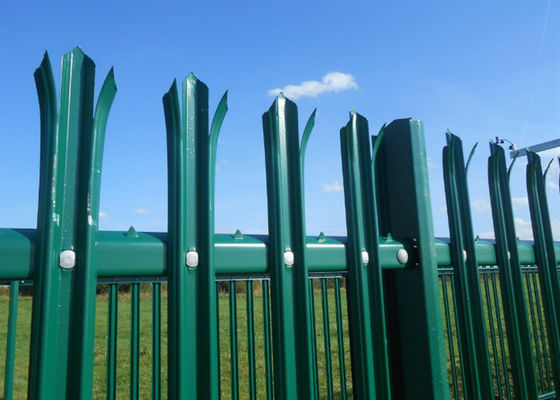

6 Ft * 8 Ft Spear Top Steel Fence Panel Powder Coated Galvanized
Spear Top Steel Fence Panel Description
Steel Picket Fence is also known as picket welded fence, ornamental fence, steel security fence. The panels are manufactured using the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles. Panels are attached with high-strength steel brackets to galvanized and powder-coated square tubular steel posts. Steel Picket Fence adopted high quality hot dipped galvanized steel tube. Top vertical tube pressed to spear by heavy duty punch.
Spear Top Steel Fence Panel Specifications
|
Fence panel height
|
1m-6m
|
|
Fence panel width
|
1m-3m
|
|
Pale height
|
0.5m-6m
|
|
Pale width
|
W pale 65-75mm d pale 65-70mm
|
|
Pale thickness
|
1.5-3.0mm
|
|
Angle rail
|
40mmx40mm 50mmx50mm 63mmx63mm
|
|
Angle rail thickness
|
3mm-6mm
|
|
RSJ post
|
100mmx55mm 100mmx68mm 150mmx75mm
|
|
Square post
|
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
|
|
Square post thickness
|
1.5mm-4.0mm
|
|
Straight fishplates or post clamps
|
30mmx150mmx7mm 40mmx180mmx7mm
|
|
Bolts and nuts
|
M8XNo.34 for pale fixing M12xNo.4 for rail fixing
|
Spear Top Steel Fence Panel Pales-"W" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
68mm-70mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Spear Top Steel Fence Panel Pales-"D" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
60mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Spear Top Steel Fence Panel Pale-Angle iron
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
40*40
|
2.0mm
3.0mm
|
Galvanized and electrostatic polyester coated or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
Spear Top Steel Fence Panel Application
Steel fence: All of the fence panels, posts, mounting hardware and gates are dipped in electracoat rust inhibitor after final assembly to prevent corrosion and are then powder coated for a premium finished product. Standard fences are in stock and shipping is more affordable than you think! wrought iron fencing systems will not only beef up the security of your residential or commercial property but will improve the appearance as well.

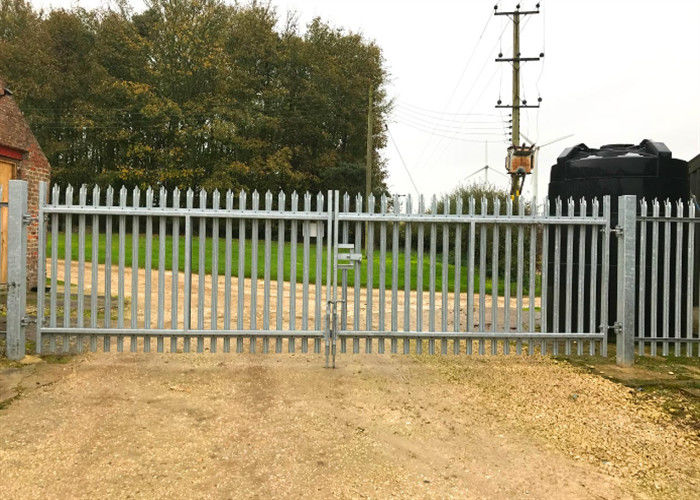

Palisade fences are used in highways, railways, utilities, commercial and industrial sites, airports, docks, waste recycling centers, schools, sports fields and leisure facilities.
Spear Top Steel Fence Panel Packing
