รายละเอียดสินค้า:
การชำระเงิน:
|
| ชื่อสินค้า: | รั้วเหล็กดัด | งานคีย์: | แผงรั้วเหล็กยอดหอก |
|---|---|---|---|
| ราง: | 50x50 มม. | ความหนาที่แนะนํา: | 2-6 มม. |
| ความสูงเหนือพื้นดิน: | 4.2ม | ปิ๊กเก็ตท็อป: | กลม |
| แบบหัว: | มีรอยบาก | ขนาดรู: | รูφ10มม. บนสีซีด |
| ใบสมัคร: | ผนังสนาม | การรักษาพื้นผิว: | PVC เคลือบ |
| ซีด: | 3.0 มม. | รูปร่างตาข่าย: | สี่เหลี่ยม |
| เน้น: | galvanized steel palisade fence,wrought iron garden fence,1.8m steel palisade fencing |
||

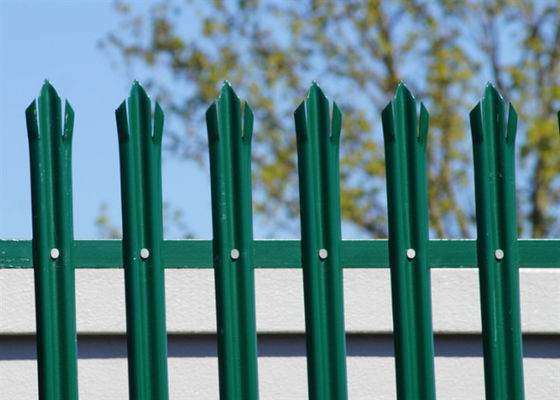

W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden
Steel Palisade Fence Description
Palisade Fencing is the perfect solution to your boundary security fencing. As Palisade Fencing is supplied piece small it is easily adapted to most site conditions.
Security Steel Palisade is supplied in kit form with the flexible design allowing the fence to be erected so that it follows the contours of the ground forming a formidable deterrent against crime and vandalism. The kit form allows for easy installation.
It also comes in several different grades of materials. The thickness of the steel Palisade can be adjusted depending on the height of the fence and the sensitivity of the area the fence is situated in.
Steel Palisade Fence Specifications
|
Fence panel height
|
1m-6m
|
|
Fence panel width
|
1m-3m
|
|
Pale height
|
0.5m-6m
|
|
Pale width
|
W pale 65-75mm d pale 65-70mm
|
|
Pale thickness
|
1.5-3.0mm
|
|
Angle rail
|
40mmx40mm 50mmx50mm 63mmx63mm
|
|
Angle rail thickness
|
3mm-6mm
|
|
RSJ post
|
100mmx55mm 100mmx68mm 150mmx75mm
|
|
Square post
|
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
|
|
Square post thickness
|
1.5mm-4.0mm
|
|
Straight fishplates or post clamps
|
30mmx150mmx7mm 40mmx180mmx7mm
|
|
Bolts and nuts
|
M8XNo.34 for pale fixing M12xNo.4 for rail fixing
|
Steel Palisade Fence Pales-"W" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
68mm-70mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Steel Palisade Fence Pales-"D" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
60mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Steel Palisade Fence Pale-Angle iron
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
40*40
|
2.0mm
3.0mm
|
Galvanized and electrostatic polyester coated or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
Steel Palisade Fence Application
Steel fence: All of the fence panels, posts, mounting hardware and gates are dipped in electracoat rust inhibitor after final assembly to prevent corrosion and are then powder coated for a premium finished product. Standard fences are in stock and shipping is more affordable than you think! wrought iron fencing systems will not only beef up the security of your residential or commercial property but will improve the appearance as well.

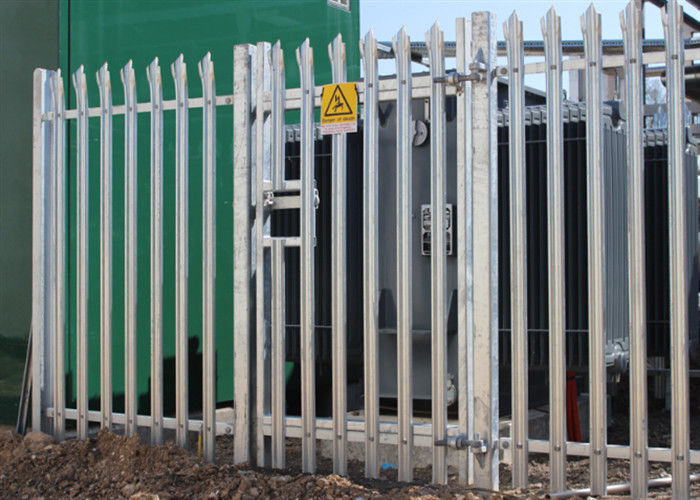

Palisade fences are used in highways, railways, utilities, commercial and industrial sites, airports, docks, waste recycling centers, schools, sports fields and leisure facilities.
Steel Palisade Fence Packing
