| ชื่อสินค้า: | รั้วเหล็กดัด | งานคีย์: | แผงรั้วเหล็กยอดหอก |
|---|---|---|---|
| แบบหัว: | กลมและมีรอยบาก | ขนาดโพสต์: | 50มม. หรือ 75มม. |
| ความกว้างของแผง: | 2m --- 3m | โพสต์ระยะห่าง: | 2.4 ม. ถึง 3.0 ม |
| ความสูง: | 1.8 ม. ถึง 3.0 ม | ขนาด: | ปรับแต่ง |
| เลเยอร์กรอบงาน: | เคลือบผง | รางแนวนอน: | 50 x 50 มม. |
| รับประกันคุณภาพ: | อย่างน้อย 10 ปี | พอร์ตการโหลด: | พอร์ต Tianjin Xingang |
| ระดับความปลอดภัย: | สูง | คุณภาพ: | สูง |
| เน้น: | 40mm steel palisade fence,residential security fencing 2.4m,steel palisade garden fence |
||

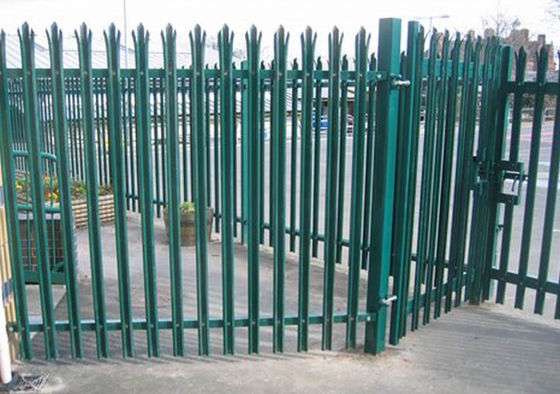

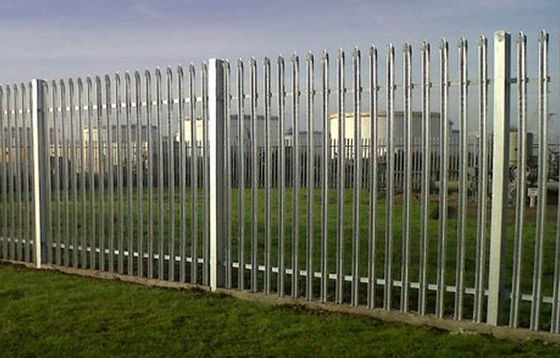

40mm X 40mm Steel Palisade Fence Garden Residential Security 2.4m
Steel Palisade Fence Description
Palisade Fencing is suitable for a variety of outdoor locations where a medium level of security is required. Designed for permanent installation, this Palisade Fencing is extremely robust and resilient and is often a popular choice of security fencing for industrial and commercial buildings, as well as public areas.
The below are our standard size and specification, in addition we also support site design and customized size, just simply provide the length of your site on all four sides of the length of the straight line length and height, contact us to quickly customize and view the effect drawings!
Steel Palisade Fence Specifications
|
Fence panel height
|
1m-6m
|
|
Fence panel width
|
1m-3m
|
|
Pale height
|
0.5m-6m
|
|
Pale width
|
W pale 65-75mm d pale 65-70mm
|
|
Pale thickness
|
1.5-3.0mm
|
|
Angle rail
|
40mmx40mm 50mmx50mm 63mmx63mm
|
|
Angle rail thickness
|
3mm-6mm
|
|
RSJ post
|
100mmx55mm 100mmx68mm 150mmx75mm
|
|
Square post
|
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
|
|
Square post thickness
|
1.5mm-4.0mm
|
|
Straight fishplates or post clamps
|
30mmx150mmx7mm 40mmx180mmx7mm
|
|
Bolts and nuts
|
M8XNo.34 for pale fixing M12xNo.4 for rail fixing
|
Steel Palisade Fence Pales-"W" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
68mm-70mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Steel Palisade Fence Pales-"D" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
60mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Steel Palisade Fence Pale-Angle iron
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
40*40
|
2.0mm
3.0mm
|
Galvanized and electrostatic polyester coated or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
Steel Palisade Fence Application
Steel fence: All of the fence panels, posts, mounting hardware and gates are dipped in electracoat rust inhibitor after final assembly to prevent corrosion and are then powder coated for a premium finished product. Standard fences are in stock and shipping is more affordable than you think! wrought iron fencing systems will not only beef up the security of your residential or commercial property but will improve the appearance as well.
Palisade fences are used in highways, railways, utilities, commercial and industrial sites, airports, docks, waste recycling centers, schools, sports fields and leisure facilities.
Steel Palisade Fence Packing
