| ชื่อสินค้า: | รั้วเหล็กดัด | งานคีย์: | รั้วท่อ |
|---|---|---|---|
| ทอเทคนิค: | การตอก | ซีด: | 70 มม. |
| วิธีการติดตั้ง: | คอนกรีตคงที่ | วัสดุกรอบ: | ท่อเหล็กอาบสังกะสีจุ่มร้อน |
| ความหนาซีด: | 3.0 มม. | ใบสมัคร: | โรงเรียน |
| ความกว้าง: | 2.75ม | สารเคลือบสังกะสี: | 65-80ไมโครเมตร |
| ขนาดแผง: | 2.35ม.x2.75ม | ข้อได้เปรียบ: | สดใส |
| เน้น: | hot dip galvanized steel palisade fence,euro palisade fence panels,steel palisade fencing w panel |
||

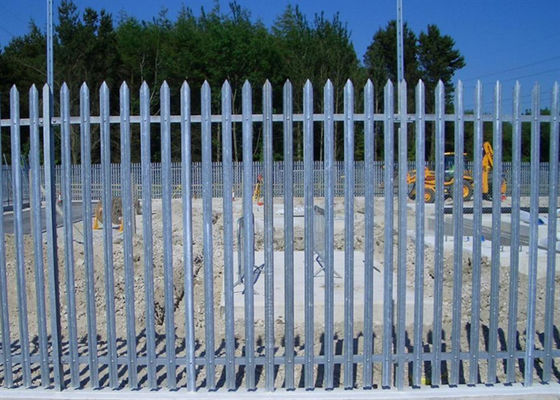

Euro Hot Dip Galvanized Metal Steel Palisade Fence Panels W Panel
Steel Palisade Fence Description
Steel Palisade Fence Specifications
|
Fence panel height
|
1m-6m
|
|
Fence panel width
|
1m-3m
|
|
Pale height
|
0.5m-6m
|
|
Pale width
|
W pale 65-75mm d pale 65-70mm
|
|
Pale thickness
|
1.5-3.0mm
|
|
Angle rail
|
40mmx40mm 50mmx50mm 63mmx63mm
|
|
Angle rail thickness
|
3mm-6mm
|
|
RSJ post
|
100mmx55mm 100mmx68mm 150mmx75mm
|
|
Square post
|
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
|
|
Square post thickness
|
1.5mm-4.0mm
|
|
Straight fishplates or post clamps
|
30mmx150mmx7mm 40mmx180mmx7mm
|
|
Bolts and nuts
|
M8XNo.34 for pale fixing M12xNo.4 for rail fixing
|
Steel Palisade Fence Pales-"W" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
68mm-70mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Steel Palisade Fence Pales-"D" section
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
60mm
|
2.0mm
|
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
|
2.5mm
|
||||
|
3.0mm
|
Steel Palisade Fence Pale-Angle iron
|
Width
|
Thickness
|
Surface Treatment
|
Head
|
Height
|
|
40*40
|
2.0mm
3.0mm
|
Galvanized and electrostatic polyester coated or Hot dipped galvanized
|
Single point
Triple point
|
1200mm-3000mm
|
Steel Palisade Fence Application
Steel fence: All of the fence panels, posts, mounting hardware and gates are dipped in electracoat rust inhibitor after final assembly to prevent corrosion and are then powder coated for a premium finished product. Standard fences are in stock and shipping is more affordable than you think! wrought iron fencing systems will not only beef up the security of your residential or commercial property but will improve the appearance as well.
Palisade fences are used in highways, railways, utilities, commercial and industrial sites, airports, docks, waste recycling centers, schools, sports fields and leisure facilities.
Steel Palisade Fence Packing
